Practix OK-12R RTR Rotary Sublimation Press 12" Dia. Drum (104"-128")
$81,600.00
Crating cost is included in the price

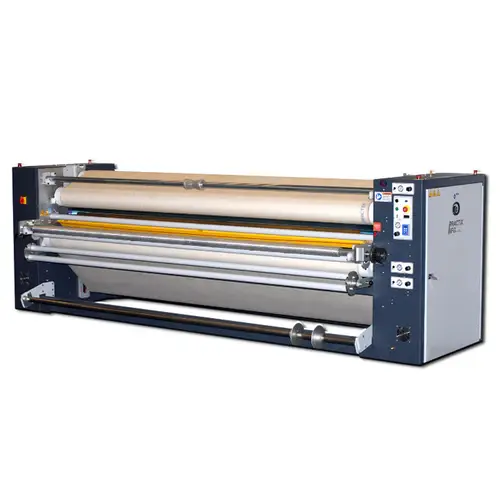

Practix OK-12 Rotary Sublimation Press (Roll-to-Roll Configuration)
PRINTING WIDTH: 104" & 128"
Practix Manufacturing’s OK-12RTR is one of the most advanced heat transfer machines currently available. With a heavy-duty unitized frame, 12” diameter drum, and varying belt widths that allow for printing on fabrics of all sizes, the OK-12RTR is a heat transfer press that is unlike anything else in its class. This model can be used for transferring on continuous or roll materials or an optional table is a feature for cut part or piece goods. Practix rotary product lines include high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.
Quantity
First file.pdf
Second file.doc
Third file.txt
SPECIFICATIONS
- 104″, and 128″ belt widths allow for printing on full-width fabrics
- 12” (300mm) diameter drum makes it the fastest small drum rotary transfer printing machine on the market
- A heavy-duty unitized frame with solid steel construction
- Oil-filled drum enables colors to print consistently from side-to-side, as well as job-to-job
- Standard triple unwind/rewind system for transfer printing from roll-to-roll
- Pneumatic brakes and clutches for precise tensioning of fabric and papers
- Ability to print banners, exhibit backdrops, sportswear, and casino felts with ease
| BELT WIDTH | 66″ (1.67m) | 88″ (2.25m) | 104″ (2.64m) | 128″ (3.25m) |
| POWER REQD | 19kW 78A 240V 1P | 25kW 76A 240V 3P | 31kW 90A 240V 3P | 37kW 120A 240V 3P |
| MAX TEMP | 450F | 450F | 450F | 450F |
| APPROX WEIGHT | 3200LB (1451Kg) | 3400LB (1542Kg) | 3600LB (1632 Kg) | 3900LB (1775 Kg) |
| AIR SUPPLY | 100 PSI 1 CFM | 100 PSI 1 CFM | 100 PSI 1 CFM | 100 PSI 1 CFM |
| DIMENSIONS | 102x58x63 | 124x58x63 | 140x58x63 | 116x58x63 |
SHIPPING
Availability varies upon production time. Rotary Press is shipped via truck line. Practix to provide Install and Training. Additional Fees do apply for Shipping/Install Training Licensed Electrician needed for install. Fork Lift will be needed upon delivery of press
WARRANTY
1 year warranty
