Jucolor CJ-UV6090Pro Ricoh Printhead
$18,500.00

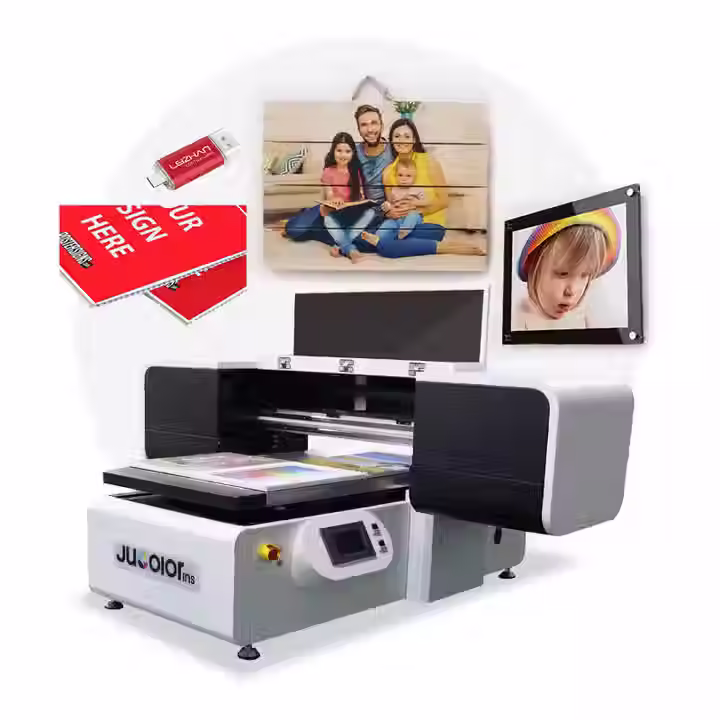

CJ-UV6090Pro-Ⅳ: The Next-Level A1 Industrial UV Printer
The CJ-UV6090Pro-Ⅳ is the latest evolution of Jucolor’s 6090Pro series, designed for maximum efficiency and precision. This 4th-generation model features an industrial-grade inkjet system, reducing system failures by 50% for unmatched reliability.
Equipped with advanced piezoelectric 3200 nozzles print heads, it delivers a 35-45% faster print speed with superior stability and lower maintenance compared to RICOH G5I heads.
Supporting 10-color UV LED ink (White, CMYK, LC, LM, Grey, Red, Varnish), it achieves photo-quality precision with exceptional color depth and accuracy.
With a 61 × 91 cm (2' × 3') print area and 20 cm (7.8") print height, it handles high-drop printing (up to 10mm), making it ideal for uneven and irregular materials such as toys, glasses cases, surfboards, shoes, helmets, electrical panels, cabinets, accessories, bottles, and cups.
Unleash your creativity with versatile, high-speed, and ultra-precise UV printing!
Quantity
SPECIFICATIONS
|
Machine Model |
CJ-UV6090Pro |
Print Head |
Ricoh G5i print head or Epson I3200 |
|
Max Print Size |
61*91cm/24*35.8 inche |
Max Print Height |
20 cm/ 7.87 inche |
|
Print Resolution |
High speed：720*720dpi
Standard：720*1080dpi |
Print Quality |
Real photo level photographic quality |
|
High Drop Distance |
13mm/20mm |
Ink Colors |
4White+CMYK,LC,LM,LK,LLK+4Varnish |
|
RIP Software |
Photo prinrt |
Printing Tech |
Micro Piezo Technology |
|
Voltage |
AC220/110±1050HZ-60HZ |
Type of Ink |
UV LED curing ink |
|
Service Environment |
20-30℃ 35*65%Rh |
Power Consumption |
2500 W/ Hour |
|
Machine Size |
145*170*77cm,220 kg |
Packing Size |
155x186x98cm 260 KG |
SHIPPING
Availability depends on production time. Equipment ships via truck line. K Engineering provides installation and training. Additional fees apply for installation, and training. A licensed electrician is required for installation, and a forklift will be needed upon delivery.
WARRANTY
1 year warranty, except for printhead and ink system
